IPLEX GAir Videoscope
The IPLEX GAir videoscope helps users reach far away inspection targets quickly and easily. With a 30 m (98 ft) and 20 m (65 ft) scope, air articulation, live image orientation, and other features…
- Maneuver through complex pipes: the guide head reduces friction and easily passes over joints between pipes while the universal push rod adapter enables a smooth passage through pipes and elbows
- Precise articulation regardless of length: pneumatic articulation with an integrated air compressor delivers fine control, and the Tapered Flex™ insertion tube balances stiffness and flexibility for easy maneuvering
- Know your location: the gravity sensor rotates live images regardless of the scope’s orientation, and the insertion length indicator enables you to track the insertion tube’s position
Long-Distance Video Borescope for Piping Systems and Heat Exchangers
Inspect Farther, Faster
Long-distance remote visual inspection (RVI) is fast and efficient with the IPLEX™ GAir videoscope, a borescope with a long length. Flexible and maneuverable, the video borescope’s 30-meter (98-foot) or 20-meter (65-foot) insertion tube can easily move through complex piping systems with multiple elbows for optimal long range pipe inspections. When you reach your inspection target, you can examine it with high-quality, wide-view images and bright LED illumination.
- Visual Inspection
- Video Borescopes
IPLEX™ One Videoscope Solution

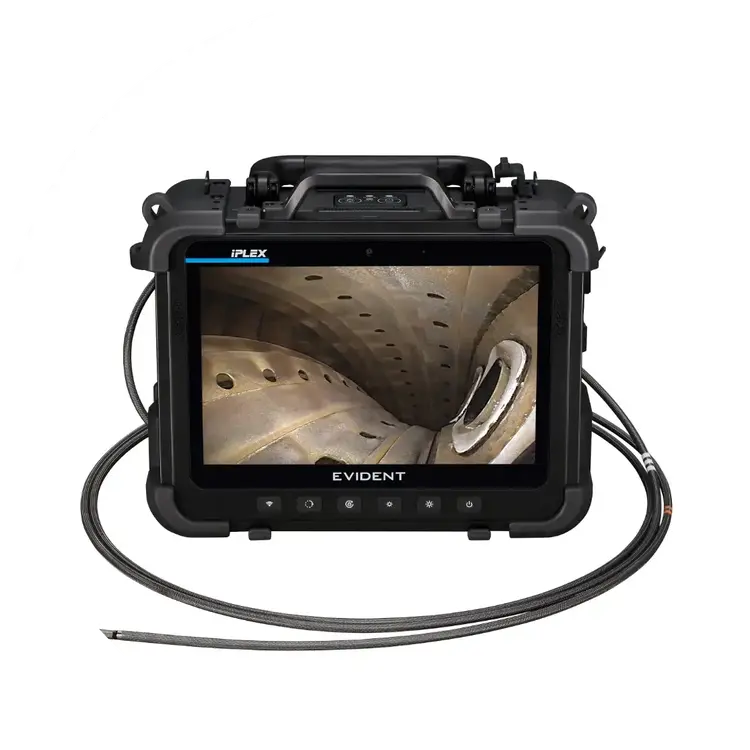

The 10th generation of the IPLEX videoscope system, IPLEX One is a unified, software-driven platform that empowers you to work faster, see more, and stay ahead. Combining groundbreaking Swoptix 3D measurement technology with viewing and analysis upgrades and modular scalability, IPLEX One redefines what’s possible in remote visual inspection.

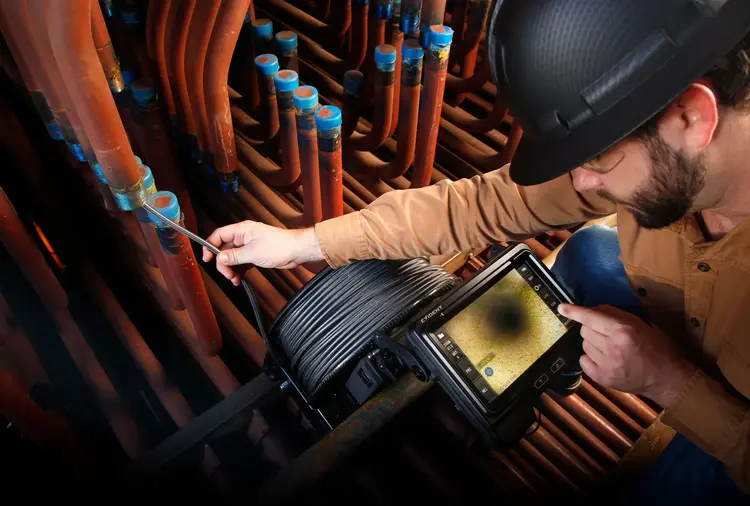

Long-Range Pipe Inspection
The IPLEX GAir long-distance video borescope combines maneuverability and brightness, so you can reach distant targets quickly and identify defects.
- Maneuver through complex pipes: the guide head reduces friction and easily passes over joints between pipes while the universal push rod adapter enables a smooth passage through pipes and elbows
- Precise articulation regardless of length: pneumatic articulation with an integrated air compressor delivers fine control, and the Tapered Flex™ insertion tube balances stiffness and flexibility for easy maneuvering

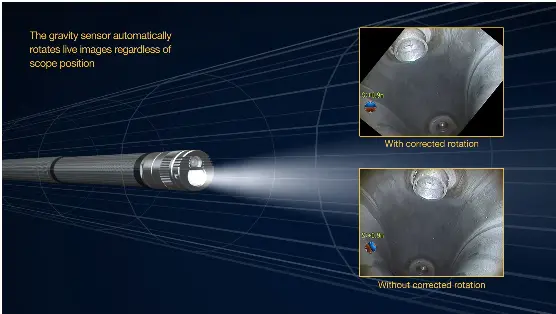

- Know your location: the gravity sensor rotates live images regardless of the scope’s orientation, and the insertion length indicator enables you to track the insertion tube’s position
Convenient Long-Distance Video Borescope Features
- Quickly change scopes: the waterproof scope unit can be swapped with no special tools
- Comfortable viewing angle: place the detachable LCD screen where you want

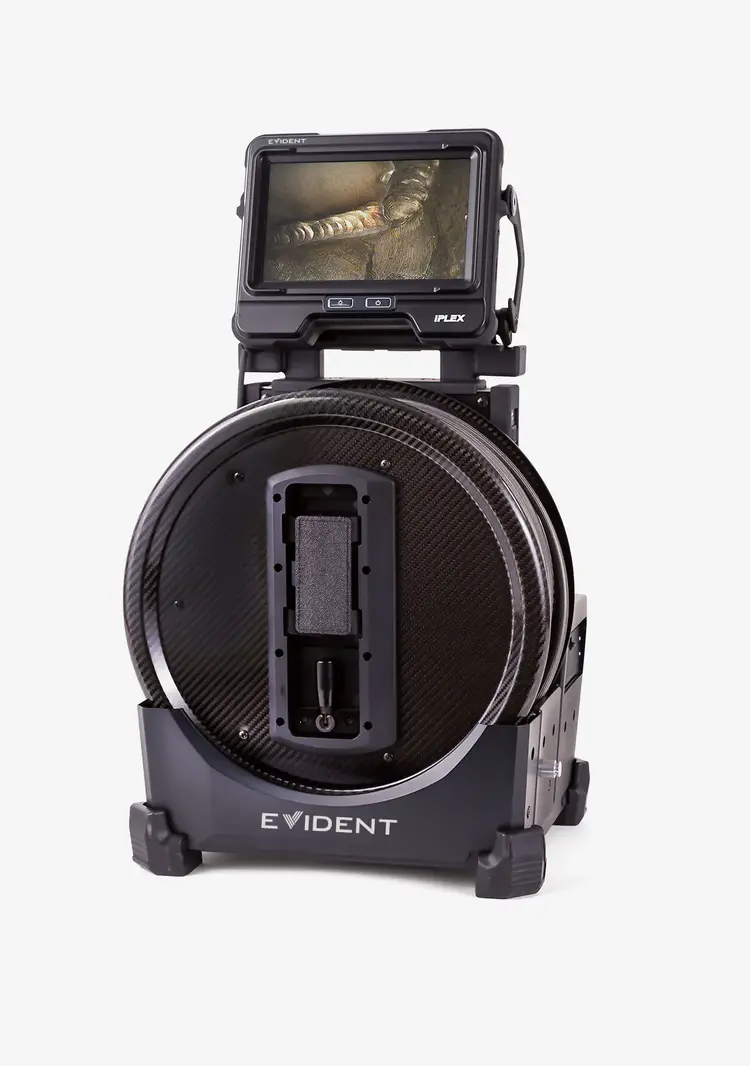

- Easy to transport: the compact, wheeled carrying case is easy to move—when you’re ready to inspect, the wheels lock to keep the unit stationary
Advanced Remote Visual Inspection Tools
Built with the high-quality image sensor, brightness, and advanced image processing the IPLEX series is known for, the IPLEX GAir long-distance video borescope enables you to see more during your inspection.
- Ultra-bright illumination: powerful LEDs light up large spaces without the intensity decay common to other long-distance video borescopes

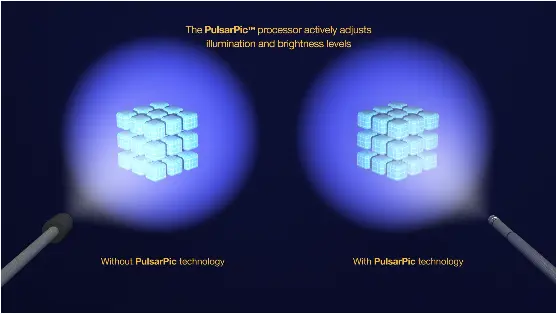

- Automatic brightness adjustments: the PulsarPic™ processor actively adjusts the illumination to consistently provide the right level of brightness
- See more of the pipe: 220-degree fish-eye optical tip adapter shows the side wall and forward view at the same time
- Real-time distortion correction: the long borescope can show distortion-corrected images with 120°, 180°, and 220° equivalent fields of view
- Clear images in large spaces: the long exposure mode enables a better probability of detection in very large spaces
- Efficient in oily environments: the oil-clearing tip adapter draws oil away from the lens for clearer images so you spend less time withdrawing the insertion tube to clean the lens
A Remote Control Borescope for Hazardous Pipeline Inspection
If you need to visually inspect dangerous or hazardous areas, such as inside a nuclear power plant, the IPLEX GAir is a remote control borescope that helps you safely view the target from farther away.

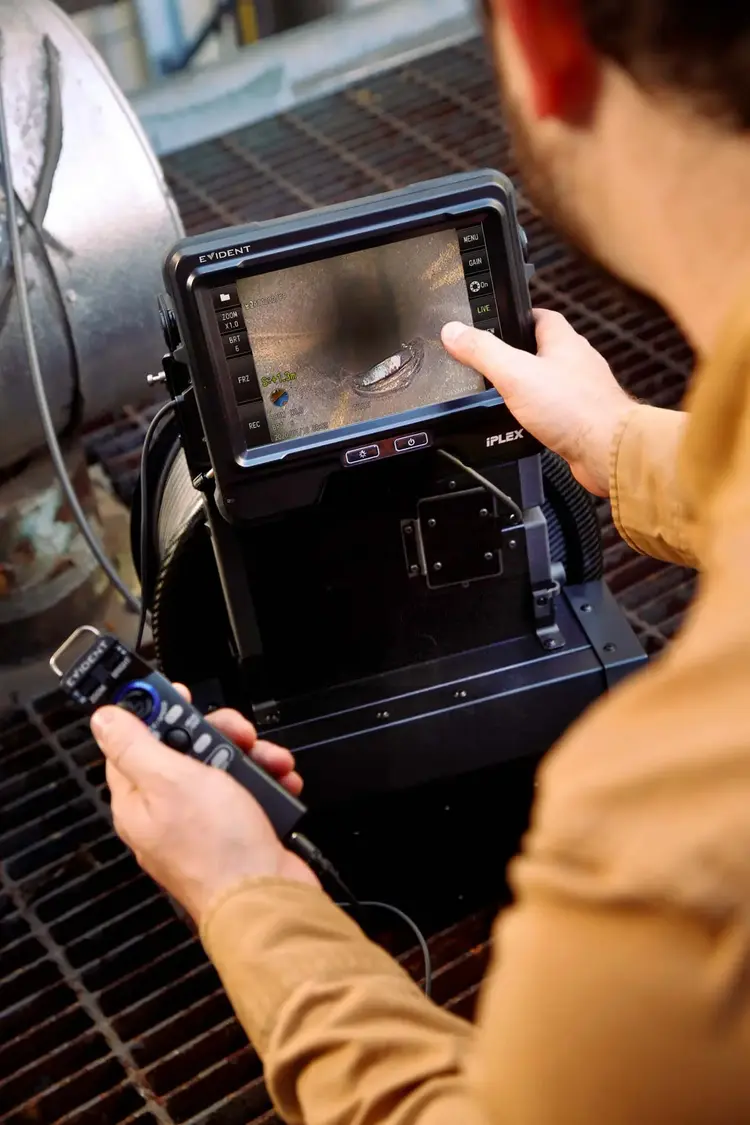

- Control from a distance: the remote controller enables you to remotely operate the video borescope’s functions from up to 100 m (328 ft) away, with an optional transponder
- Remote alerts: the remote control vibrates to alert you of a situation that could damage your video borescope, such as removing the insertion tube while articulated
- Position the LCD up to 5 m (16 ft) away: an available extension cable enables you to position the LCD monitor far from the main unit
- Wireless image sharing: the USB wireless LAN adapter enables you to share live images with other colleagues*
*Using a recommended third-party USB wireless adapter

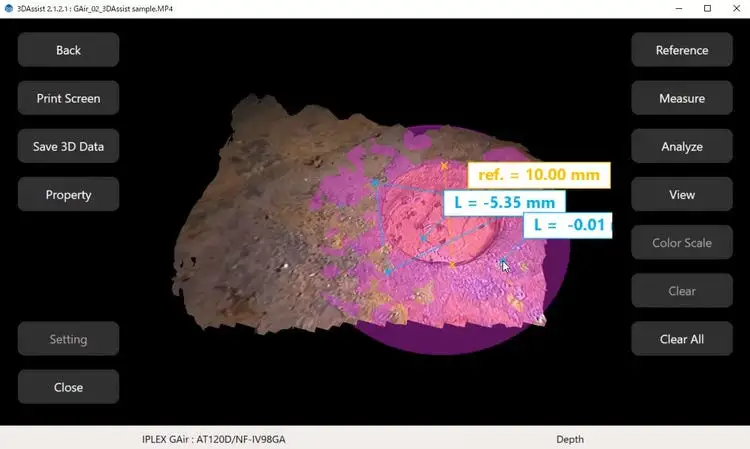

Boost Inspection Precision with Integrated 3D Analysis
Combine standard optical adapters with our 3DAssist™ software to enable advanced 3D modeling and comparative measurement. This powerful integration significantly reduces inspection time while dramatically enhancing inspection quality.
Technical Specifications
Exterior High-durability tungsten braid
| Exterior | High-durability tungsten braid |
|---|
Tube Flexibility Tapered Flex insertion tube with flexibility that gradually increases toward the distal end
| Tube Flexibility | Tapered Flex insertion tube with flexibility that gradually increases toward the distal end |
|---|
Illumination LED illumination LED illumination
| Illumination LED illumination | LED illumination |
|---|
Model No. IV9000GA
| Model No. | IV9000GA |
|---|
Dimensions (W x H x D) 359 mm × 465 mm × 307 mm(14.1 in. × 18.3 in. × 12.1 in.)(protruding parts not included)
| Dimensions (W x H x D) | 359 mm × 465 mm × 307 mm(14.1 in. × 18.3 in. × 12.1 in.)(protruding parts not included) |
|---|
Weight (main unit) 11.7 kg(25.8 lbs.)
| Weight (main unit) | 11.7 kg(25.8 lbs.) |
|---|
LCD monitor 8-inch daylight view WVGA LCD with capacity-type touch screen, 5-step adjustable LCD backlight
| LCD monitor | 8-inch daylight view WVGA LCD with capacity-type touch screen, 5-step adjustable LCD backlight |
|---|
Video output Type A HDMI 1.4
| Video output | Type A HDMI 1.4 |
|---|
Headset (microphone in/ audio out) Φ3.5 mm mini plug CTIA
| Headset (microphone in/ audio out) | Φ3.5 mm mini plug CTIA |
|---|
USB connector Type A connector, Version 2.0 standardsCan be connected to a USB wireless LAN adapter (recommended) or remote control unit (optional)
| USB connector | Type A connector, Version 2.0 standardsCan be connected to a USB wireless LAN adapter (recommended) or remote control unit (optional) |
|---|
Power supply Li-ion battery: 16 V nominal, approx. 180-minute operating time100 V to 240 V, 50/60 Hz (with supplied AC adaptor)External battery (with type D Ni-MH battery x8): 9.6 V
| Power supply | Li-ion battery: 16 V nominal, approx. 180-minute operating time100 V to 240 V, 50/60 Hz (with supplied AC adaptor)External battery (with type D Ni-MH battery x8): 9.6 V |
|---|
Constant video microSDHC (using the recommended Class 10 microSDHC)
| Constant video | microSDHC (using the recommended Class 10 microSDHC) |
|---|
Gain control 4-step adjustable gain control (Manual, Auto, WiDER1, WiDER2)
| Gain control | 4-step adjustable gain control (Manual, Auto, WiDER1, WiDER2) |
|---|
Dynamic noise reduction Available
| Dynamic noise reduction | Available |
|---|
Sharpness control 4-step adjustable sharpness control
| Sharpness control | 4-step adjustable sharpness control |
|---|
Saturation control 3-mode adjustable control of color saturation (Monotone, Natural, Vivid)
| Saturation control | 3-mode adjustable control of color saturation (Monotone, Natural, Vivid) |
|---|
Title text options 30-character display
| Title text options | 30-character display |
|---|
Note text options 30-character title display, mark, free drawing
| Note text options | 30-character title display, mark, free drawing |
|---|
Image display functions Live image can be inverted to right and left, inverted to up and down, and rotated 180 degrees
| Image display functions | Live image can be inverted to right and left, inverted to up and down, and rotated 180 degrees |
|---|
Gravity indicator Display gravity indicator according to the orientation of the scope's distal end
| Gravity indicator | Display gravity indicator according to the orientation of the scope's distal end |
|---|
Insertion length indicator Indicates insertion length according to the drum rotation; insertion length can be marked at an arbitrary position
| Insertion length indicator | Indicates insertion length according to the drum rotation; insertion length can be marked at an arbitrary position |
|---|
Live image orientation Depending on the orientation of the scope tip, the live image can be rotated and displayed to match the direction of gravity to the bottom of the LCD display
| Live image orientation | Depending on the orientation of the scope tip, the live image can be rotated and displayed to match the direction of gravity to the bottom of the LCD display |
|---|
Screen display Content can be displayed and rotated 180 degrees
| Screen display | Content can be displayed and rotated 180 degrees |
|---|
Recording format Compressed JPEG format
| Recording format | Compressed JPEG format |
|---|
Recording format MPEG 4 AVC/H.264Conforms to baseline profile; Windows Media Player 12 compatible
| Recording format | MPEG 4 AVC/H.264Conforms to baseline profile; Windows Media Player 12 compatible |
|---|
Wireless LAN Directly connect to an external wireless device equipped with iOS to stream live images
| Wireless LAN | Directly connect to an external wireless device equipped with iOS to stream live images |
|---|
Scaler measurement The distance between two points based on a known measurement in the same plane
| Scaler measurement | The distance between two points based on a known measurement in the same plane |
|---|
Other parts In air : -15 °C to 48 °C (5 °F to 118.4 °F) (with Li-ion battery)In air : 0 °C to 40 °C (32 °F to 104 °F) (with AC power adapter)
| Other parts | In air : -15 °C to 48 °C (5 °F to 118.4 °F) (with Li-ion battery)In air : 0 °C to 40 °C (32 °F to 104 °F) (with AC power adapter) |
|---|
Other parts Not dustproof, waterproof, or dripproof
| Other parts | Not dustproof, waterproof, or dripproof |
|---|
