Videoscopes & Borescopes

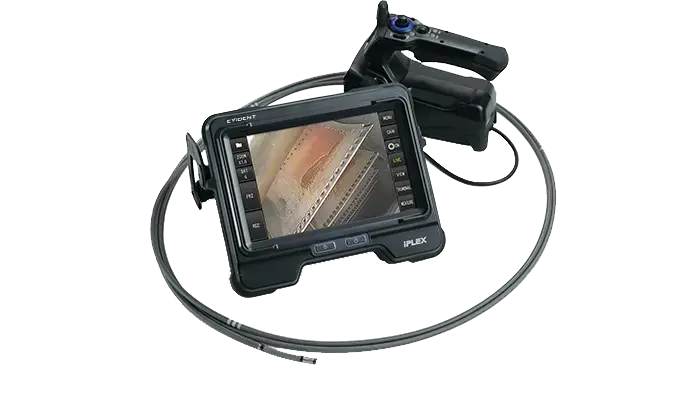

IPLEX GX/GT Videoscopes
With interchangeable insertion tubes and light sources, an 8 inch touch screen, and advanced imaging features, the IPLEX GX/GT videoscope delivers an optimal balance of versatility, imaging…
- Easy-to-use touch screen and hot key controls
- Position the screen where it’s comfortable for you
- Bright and clear images with smart video
The Right Tool for the Job
With interchangeable insertion tubes and light sources, an 8-inch touch screen, and advanced imaging features, the IPLEX™ GX/GT video recording borescope delivers an optimal balance of versatility, imaging capabilities, and ease of use.
- Visual Inspection
- Video Borescopes

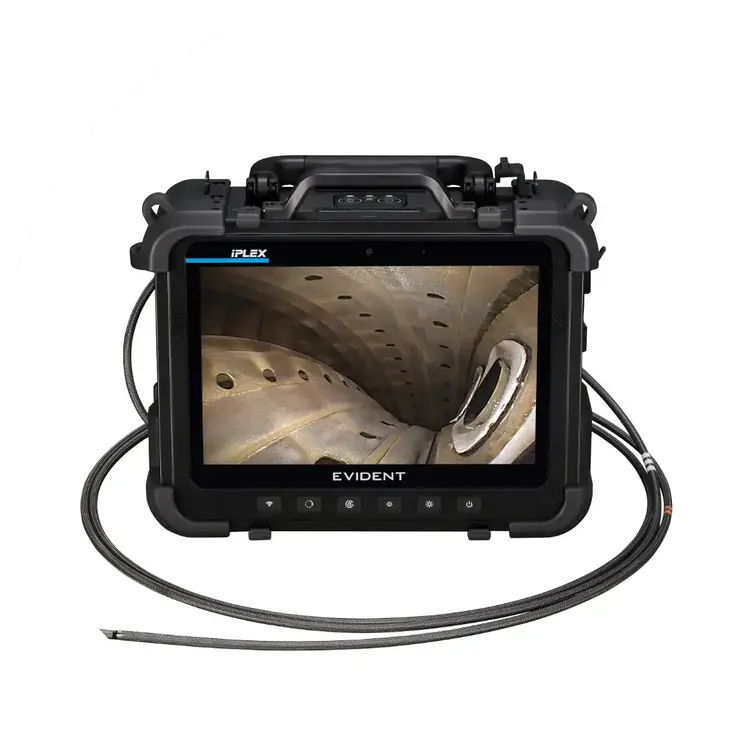

IPLEX™ One Videoscope Solution
The 10th generation of the IPLEX videoscope system, IPLEX One is a unified, software-driven platform that empowers you to work faster, see more, and stay ahead. Combining groundbreaking Swoptix 3D measurement technology with viewing and analysis upgrades and modular scalability, IPLEX One redefines what’s possible in remote visual inspection.
Powerful Features at Your Fingertips
- Easy-to-use touch screen and hot key controls
- Position the screen where it’s comfortable for you
- Bright and clear images with smart video
Powerful Features at Your Fingertips
- Easy-to-use touch screen and hot key controls
- Position the screen where it’s comfortable for you
- Bright and clear images with smart video
See the Difference
A vivid 8-inch LCD monitor delivers clear, bright images, helping you spot defects quicker.
Precise Movements with a Light Touch
Responsive TrueFeel™ articulation enables you to control the scope’s tip with precise movement so that you can navigate to your target area quickly and stay in position with a locking capability.
A light touch of the control helps minimize fatigue when working for long hours.

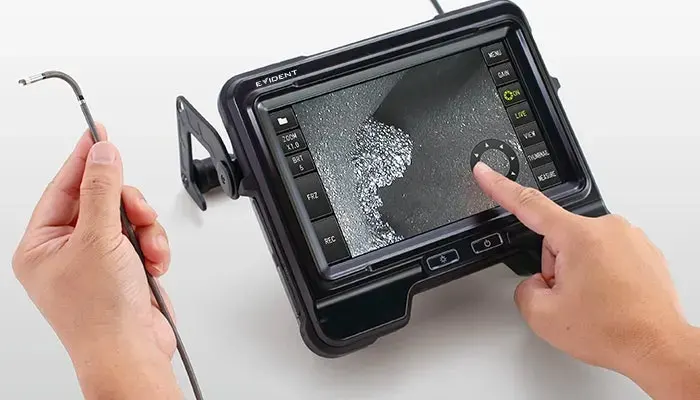

Convenient Controls

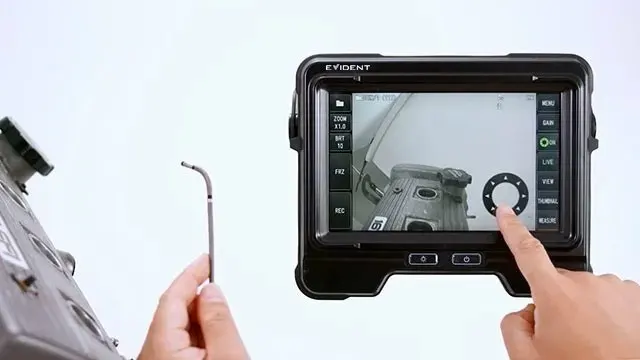

The large monitor leaves plenty of room to display both your inspection image and quick control buttons. Most functions can be controlled using the touch screen, including the articulation. If you want to use the full screen to view images, the hot keys on the controller give you control over the most important functions.
Innovative Imaging Improves Visual Inspections
Bright Illumination
The IPLEX GX/GT video borescope’s LED light source is 30% brighter than its predecessor (the IPLEX RX) to facilitate inspection in large, wide spaces.
IPLEX RX/RT (predecessor)
IPLEX GX/GT

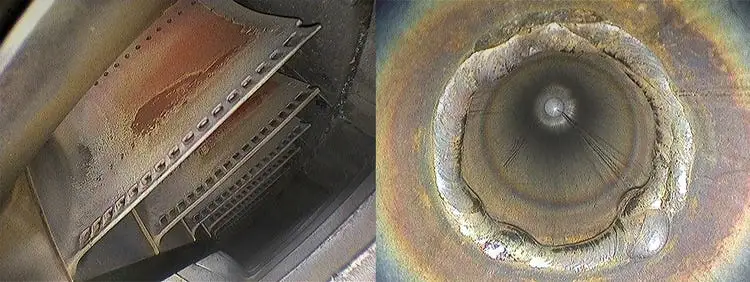

Crisp Images
The video borescope’s noise reduction algorithm makes it easier to locate problems and defects in dark areas.
Smooth 60 fps Video
Capture smooth videos with the video borescope’s high frame rate. If you are recording a moving object, you can obtain clear videos with no stutter.
IPLEX RX/RT (predecessor)
IPLEX GX/GT
Bookmark
Smart Video Recording
Record still images and video simultaneously
With the push of a button, you can capture still images while recording a video without interruption.
Bookmark
Add bookmarks to save time and quickly find critical moments during video reviews.
Constant video*
Never lose critical inspection recordings. The video recording borescope automatically records the last 30 minutes of your inspection even if you forget to press the record button.
*Available only with the IPLEX GX model and requires an optional microSDHC card.
Powerful Measurement at Your Fingertips
The video recording borescope is equipped with scalar measurement as a standard feature, enabling you to size objects using a reference defect. For more advanced functionality, upgrade to the stereo measurement option to size objects using precise three-dimensional coordinates.
Create Reports in Minutes

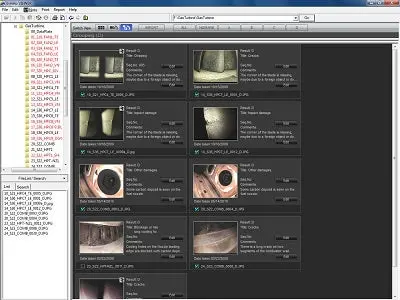

InHelp™ inspection assist software streamlines the whole process, from inspection to report generation, dramatically improving your work efficiency.
- On your borescope screen: create a customized workflow to streamline inspections
- On your PC: generate inspection reports using customizable templates
Other features
- Durable, 4-layer construction insertion tube
- PulsarPic™ processor for constant image optimization
- WiDER™ technology for image contrast matching
- Long-lasting, 186-minute battery life

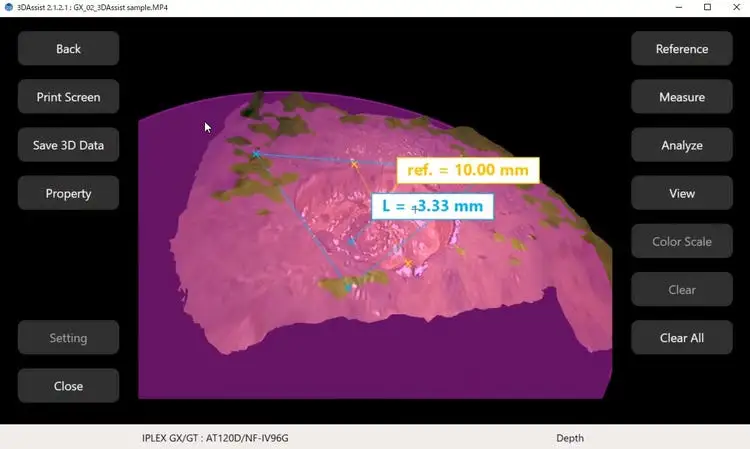

Boost Inspection Precision with Integrated 3D Analysis
Combine standard optical adapters with our 3DAssist™ software to enable advanced 3D modeling and comparative measurement. This powerful integration significantly reduces inspection time while dramatically enhancing inspection quality.
Interchangeable Scopes and Light Sources
Adapt the Video Borescope to Your Inspection Tasks with Modular Components
Scopes are available in 4 mm and 6 mm diameters with lengths up to 10 meters (32 feet). Interchangeable illumination modules also let you to change between white LED, UV, or IR.
Scope unit
- Scope diameter 6.0 mm: length 2.0 / 3.5 / 7.5 / 10 m
- Scope diameter 4.0 mm: length 2.0 / 3.5 m
Light sources
- White light (standard): standard inspections
- Ultraviolet (UV, optional): detect hairline cracks
- Infrared (IR, optional): view objects in dark areas
The scopes and illumination modules can be changed on site quickly and easily, reducing downtime.
White light
UV light
Easy Data Sharing and Collaboration
Using the recommended USB wireless LAN adapter, you can securely send saved images and video from your IPLEX to your PC using the IPLEX desktop app wirelessly or to a smart phone or tablet using the IPLEX Image Share app. This makes it easier to get your data off your video borescope and enables you to share it with others for help diagnosing issues.

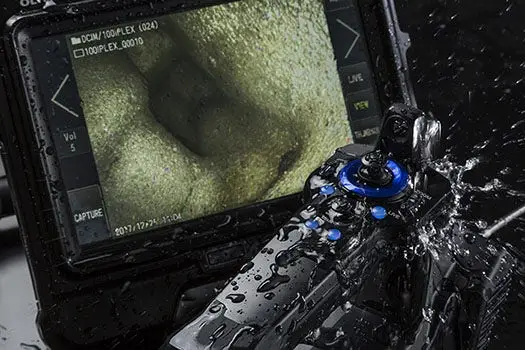

Tested Tough
Designed to meet IP65 standards for dust and water resistance and built to pass U.S. Department of Defense testing (MIL-STD) for protection against:
- Drops of up to 1.2 meters (4 feet)
- Vibration
- Blowing rain
- Dust
- High humidity
- Salt fog
- Freezing rain
- Electromagnetic environments
- Explosive atmospheres
See Clearly in Oily Environments
The grooves on the oil-clearing tip adapter use capillary action to draw oil away from the lens, keeping your images clear and visible so that you don't have to stop your inspection to wipe oil off the scope’s lens.
Other Features
- Illuminated buttons for dark environments
- High temperature alert
- HDMI video out
Applications

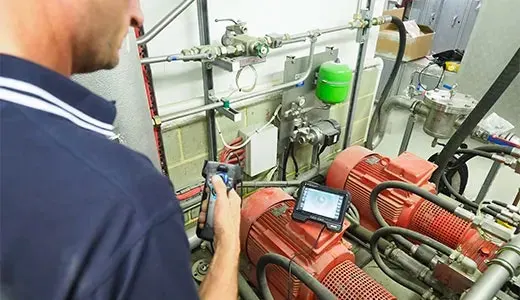

IPLEX GX/GT for Turbine Inspection >

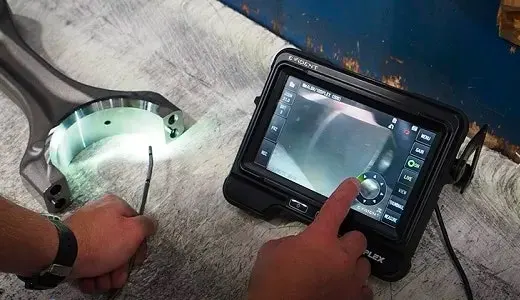

IPLEX GX/GT for Inspection Services >
Technical Specifications
Scalar measurement Using reference length to measure object length
| Scalar measurement | Using reference length to measure object length |
|---|
Type Method
| Type | Method |
|---|
Vibration MIL-STD-810G, METHOD 514.7, Procedure I (general vibration test)
| Vibration | MIL-STD-810G, METHOD 514.7, Procedure I (general vibration test) |
|---|
Shock MIL-STD-810G, METHOD 516.7 Procedure IV (transit drop test)
| Shock | MIL-STD-810G, METHOD 516.7 Procedure IV (transit drop test) |
|---|
Water Resistance MIL-STD-810G, METHOD 506.6, Procedure I (rain and blowing rain test)
| Water Resistance | MIL-STD-810G, METHOD 506.6, Procedure I (rain and blowing rain test) |
|---|
Humidity MIL-STD-810G, METHOD 507.6, Procedure II (aggravated cycle)
| Humidity | MIL-STD-810G, METHOD 507.6, Procedure II (aggravated cycle) |
|---|
Salt Fog MIL-STD-810G, METHOD 509.6
| Salt Fog | MIL-STD-810G, METHOD 509.6 |
|---|
Sand and Dust MIL-STD-810G, METHOD 510.6, Procedure I (blowing dust test)
| Sand and Dust | MIL-STD-810G, METHOD 510.6, Procedure I (blowing dust test) |
|---|
Icing/Freezing Rain MIL-STD-810G, METHOD 521.4
| Icing/Freezing Rain | MIL-STD-810G, METHOD 521.4 |
|---|
Explosive Atmosphere MIL-STD-810G, METHOD 511.6, Procedure I (operation in an explosive atmosphere test)
| Explosive Atmosphere | MIL-STD-810G, METHOD 511.6, Procedure I (operation in an explosive atmosphere test) |
|---|
Electromagnetic Interference (EMI) MIL-STD-461G, RS103 above decks
| Electromagnetic Interference (EMI) | MIL-STD-461G, RS103 above decks |
|---|
Software & Options
Connecting You with More
Streamline your visual inspections with ViSOL. Designed to intuitively organize, analyze, and report inspection data, ViSOL delivers actionable insights with advanced analytics, clear visualization, and seamless collaboration. A fully scalable cloud software solution, ViSOL supports digital transformations for individuals and organizations at any scale.

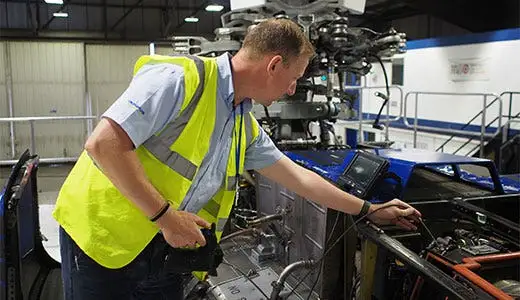

Applications
