The 10th-generation evolution of the IPLEX videoscope system, IPLEX™ One is a unified, software-driven platform that empowers you to work faster, see more, and stay ahead—no matter the environment or…
Unleash the Power of One
IPLEX One is a unified, scalable ecosystem that consolidates software, insertion tubes, and optical tip adapters into a single shared platform. With performance tiers—Plus, Expert, Prime—all based on the same hardware, upgrades can be done via software, allowing the system to easily evolve without any hardware upgrades.
IPLEX One is a platform—not a product. It’s designed to simplify today’s inspections and scale effortlessly for tomorrow’s challenges.

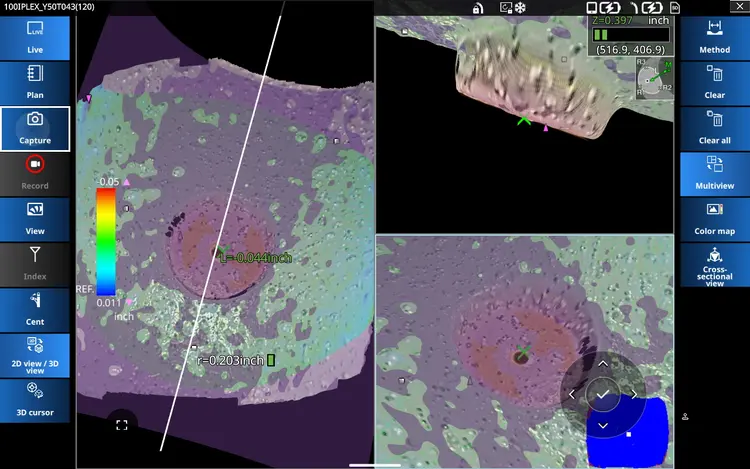

Breakthrough optics and measurement technology unlock unmatched clarity, precision, and speed—without disrupting your workflow.
Instantly switch between near and far focus and direct and side view focus with Swoptix™ multiview technology

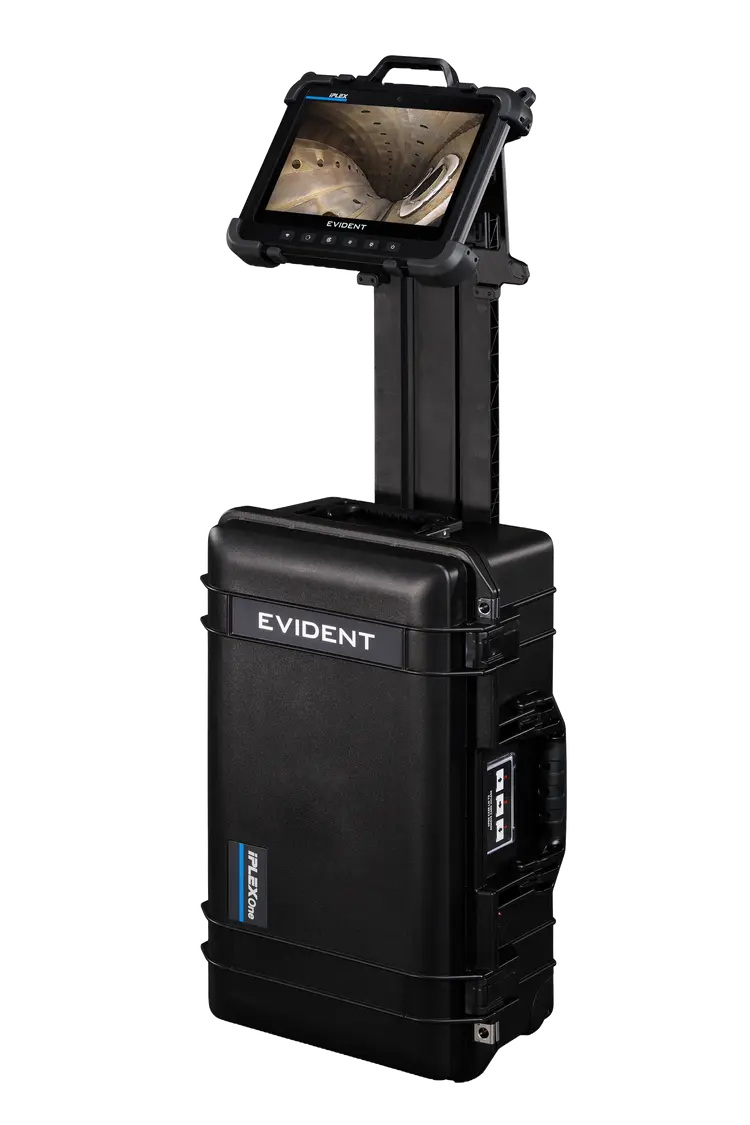

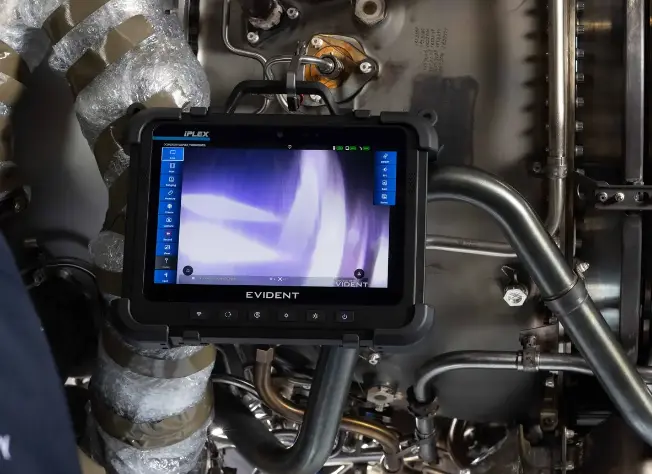

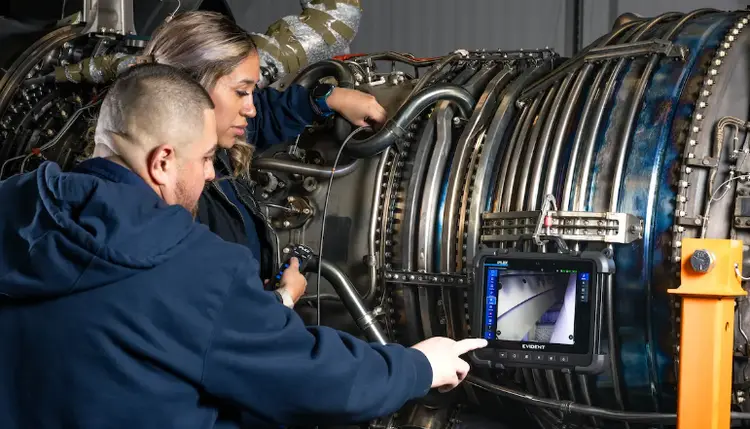

Designed for aviation, power generation, oil and gas, and security applications, IPLEX One is built to move with you, adapt to your environment, and operate without limits.

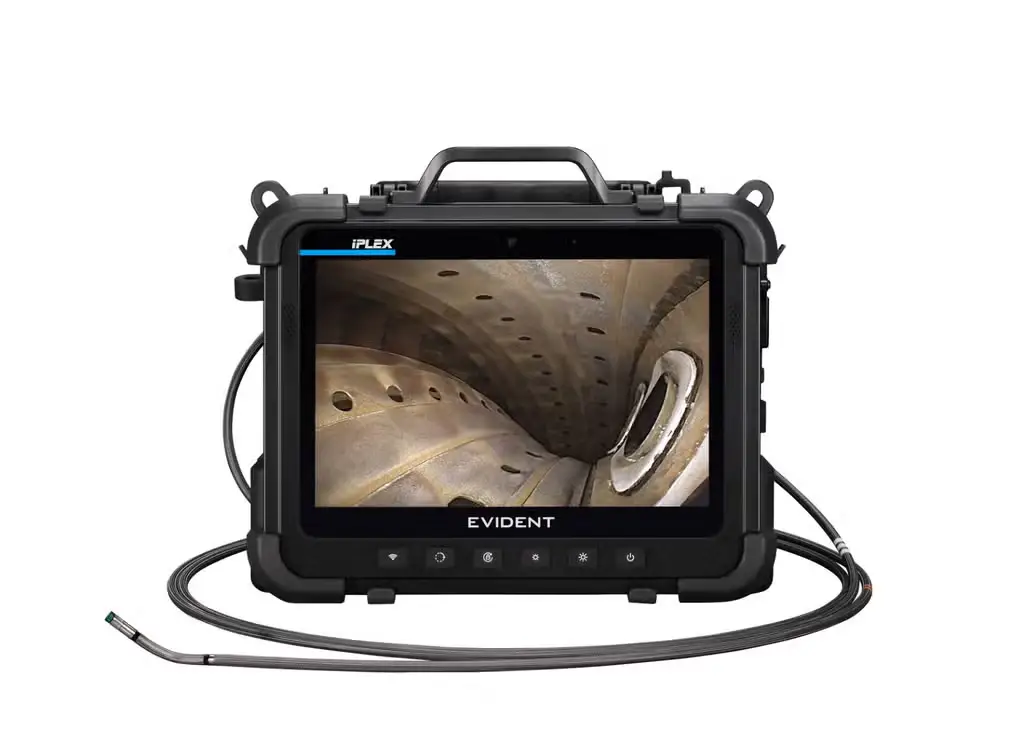

IPLEX One absorbs impact, resists dirt and moisture, and performs through heavy vibration. It’s also made for long shift use, with ergonomic design and a 10-inch anti-reflective touchscreen.
| Model No. | IV10420 / IV10435 / IV10620 / IV10630 / IV10635 / IV10650 / IV10675 / IV106100 |
|---|---|
| Insertion tube | Scope diameter / φ4.0 mm / φ6.0 mm |
| Scope length | 2.0 m (6.56 ft) / 3.5 m (11.48 ft) / 2.0 m (6.56 ft) / 3.0 m (9.84 ft) / 3.5 m (11.48 ft) / 5.0 m (16.40 ft) / 7.5 m (24.61 ft) / 10.0 m (32.81 ft) |
| Exterior | High-durability tungsten braid |
| Tube flexibility | Uniform stiffness / Tapered Flex insertion tube with flexibility that gradually increases toward the distal end |
| Gravity Indicator | - / Available |
| Optical system | Field of view / Selectable by optical adaptor |
| Illumination | Laser Diode, White LED, Ultra Violet LED (365nm), Infrared LED (950nm) |
|---|---|
| Articulation section | Articulation angle (all-way) / 160° / 180° / 150° / 130° |
| Model No. | IV10000, Operation unit |
|---|---|
| Dimensions (W × H × D) | 305 mm × 220 mm × 154 mm (12.0 in. × 8.7in. × 6.1 in.) (protruding parts not included) |
| Approx. system weight (main unit + operation unit) | When combined with IV10420: 6.40kg (14.1lb) / When combined with IV10435: 6.46kg (14.2lb) / When combined with IV10620: 6.48kg (14.3 lb) / When combined with IV10630: 6.56kg (14.5 lb) / When combined with IV10635: 6.60kg (14.6 lb) / When combined with IV10650: 6.72kg (14.8lb) / When combined with IV10675: 6.92kg (15.3lb) / When combined with IV106100: 7.12kg (15.7lb) |
| LCD monitor | 10.1-inch WUXGA (1920 × 1200), IPS, High contrastHard surface and multi-touch interface (10 point), capacitiveDaylight readable display (Optical bonding + AR coating) 1100 NIT-backlight |
| Video output | Type A HDMI 2.0 |
| Headset (microphone in/ audio out) | Compatible with Bluetooth® headset/microphone |
| Data I/O Ports | USB Type-C Port × 3Port 1: USB 3.2 Gen.1, USB Power Delivery 3.0 (Input 20V/5A, Output 5V/3A)Port 2: USB 3.2 Gen.1, USB Power Delivery 3.0 (Input 20V/1.5A, Output 5V/0.9A)Port 3: USB 3.2 Gen.1, USB Power Delivery 3.0 (Input 20V/1.5A, Output 5V/0.9A) |
| Power supply | Li-ion battery for Main Unit: 10.8 V nominal, approx. 360-minute operating time (Main Unit + Scope Unit)Li-ion battery for Tablet: 10.8 V nominal, approx. 180-minute operating time100 V to 240 V, 50/60 Hz (with supplied AC adaptor) |
| Recording media | Internal SSD (256 GB) or USB flash memory |
| Title Text Options | 51-character display |
| Image adjustment | Zoom function (digital seamless zoom up to 5 times), Gain (7-step), WiDER (5-step), Contrast (4-step), Dynamic Noise Reduction (3-step), Brightness (Gain Auto: 16-step, Gain Manual: 24-step), Sharpness (16-step), Saturation (21-step), Red Boost, Color Temperature (2000K~12000K, 21-step), Scene Preset, Advanced Setting, Image Display Functions |
| Still image recording | Resolution / H960 × V752 (pixels)**When Print Screen is on, the resolution becomes H1280 × V800*Resolution is varied depends on optical adapter |
| Recording format | JPEG (.JPG), PNG (.PNG) |
| Video recording | Resolution / H960 × V752 (pixels)**When Print Screen is on, the resolution becomes H1280 × V800 |
| Recording format | MPEG 4 AVC/H.264 (.MP4 file) |
| Wi-Fi | 2.4GHz (802.11 b/g/n/ax) x 2ch (Built into Operation unit）Wireless connectivity is available by connecting a compatible WiFi dongle to the IV10000 |
| Bluetooth® | Bluetooth® 5.2 × 1(Built into Operation unit）Wireless connection with a remote control is supported |
| AT80D/FF-IV104 | AT120D/NF-IV104 / AT120D/FF-IV104 / AT120S/NF-IV104 / AT120S/FF-IV104 / AT80D/80D-IV104 / AT60S/60S-IV104 |
|---|---|
| Optical system | Field of view / 80° / 120° / 120° / 120° / 120° / 80°/80° / 60°/60° |
| Direction of view | Forward / Forward / Forward / Side / Side / Forward / Side |
| Depth of field*1 | 40 mm to inf / 3 to 300 mm / 17 mm to inf / 2 to 40 mm / 8 mm to inf / 4 to 280 mm / 3 to 250 mm |
| Distal end | Outer diameter*2 / φ4.0 mm / φ4.0 mm / φ4.0 mm / φ4.0 mm / φ4.0 mm / φ4.0 mm / φ4.0 mm |
| Distal end*3 | 20.9 mm / 20.4 mm / 20.5 mm / 21.1 mm / 21.1 mm / 22.3 mm / 24.7 mm |
| φ4.0 mm Swoptix 3D Measurement | φ4.0 mm Swoptix Multiview |
|---|---|
| AT100DD-IV104 | AT80SS-IV104 / AT110DN/F-IV104 / AT100D/S-IV104 |
| Optical system | Field of view / 100° / 80° / 120°/110° / 100° |
| Direction of view | Forward / Side / Forward / Forward / Side |
| Depth of field*1 | 4 to 150 mm / 4 to 150 mm / 3 to 25 mm / 20 mm to inf / 6 mm to inf / 5 mm to inf |
| Distal end | Outer diameter*2 / φ4.0 mm / φ4.0 mm / φ4.0 mm / φ4.0 mm |
| Distal end*3 | 21.0 mm / 23.2 mm / 20.9 mm / 22.4 mm |
| φ6.0 mm Swoptix 3D Measurement | φ6.0 mmSwoptix Multiview |
| AT120DD-IV106 | AT100SS-IV106 / AT110DN/F-IV106 / AT100D/S-IV106 |
| Optical system | Field of view / 120° / 100° / 120°/110° / 100° |
| Direction of view | Forward / Side / Forward / Forward / Side |
| Depth of field*1 | 4 to 150 mm / 3 mm to 150 / 3 to 25 mm / 20 mm to inf / 6 mm to inf / 5 mm to inf |
| Distal end | Outer diameter*2 / φ6.0 mm / φ6.0 mm / φ6.0 mm / φ6.0 mm |
| Distal end*3 | 21.6 mm / 25.0 mm / 20.6 mm / 22.3 mm |
| AT80D/FF-IV106 | AT120D/NF-IV106 / AT120D/FF-IV106 / AT120S/NF-IV106 / AT120S/FF-IV106 / AT90D/90D-IV106 / AT70S/70S-IV106 |
|---|---|
| Optical system | Field of view / 80° / 120° / 120° / 120° / 120° / 90°/90° / 70°/70° |
| Direction of view | Forward / Forward / Forward / Side / Side / Forward / Side |
| Depth of field*1 | 18 mm to inf / 5 to 330 mm / 17 mm to inf / 2 to 50 mm / 8 mm to inf / 4 to 280 mm / 3 to 250 mm |
| Distal end | Outer diameter*2 / φ6.0 mm / φ6.0 mm / φ6.0 mm / φ6.0 mm / φ6.0 mm / φ6.0 mm / φ6.0 mm |
| Distal end*3 | 20.8 mm / 20.9 mm / 20.5 mm / 21.6 mm / 21.6 mm / 22.7 mm / 26.7 mm |
| Operating temperature | Insertion tube / In air: -25 °C to 100 ℃ (-13 °F to 212 °F) |
|---|
| Tablet | In air: -21 °C to 49℃ (-5.8 °F to 120.2 °F) (with Li-ion battery) |
|---|
| System | In air: -21 °C to 49℃ (-5.8 °F to 120.2 °F) (with Li-ion battery) |
|---|---|
| Relative humidity | All parts / 15 to 90% |
| Liquid resistance | All parts / Operable when exposed to machine oil, light oil, or 5 % saline solution |
| Waterproofing | Insertion tube / Operable under water with viewing tip adaptor attachedNot operable underwater with stereo measurement tip adaptorsIV104 series: Up to an equivalent to 3.5 m (11.6 ft) deep, IV106 series: Up to an equivalent to 10.0 m (33.0 ft) deep |
| Other parts | IP65**It does not apply when the protective covers on the system are open. |
| Type | Method |
|---|---|
| Low atmosphere | MIL-STD-810H, Method 500.6 Procedure I |
| High temperature | MIL-STD-810H, Method 501.7 Procedure I |
| Cold temperature | MIL-STD-810H, Method 502.7 Procedure I |
| Rain and Blowing rain | MIL-STD-810H, Method 506.6 Procedure I |
| Humidity | MIL-STD-810H, Method 507.6 |
| Salt Fog / Corrosive Environments | MIL-STD-810H, Method 509.8 |
| Blowing dust | MIL-STD-810H, Method 510.7 Procedure I |
| Explosive Atmosphere | MIL-STD-810H, Method 511.7 Procedure I |
| Vibration | MIL-STD-810H, Method 514.8 Procedure I |
| Shock | MIL-STD-810H, Method 516.8 Procedure IV |
| Icing/Freezing Rain | MIL-STD-810H, Method 521.4 |
| Conducted Susceptibility, Power Leads | MIL-STD-461G, CS101 (System) |
| Conducted Susceptibility, Bulk Cable Injection | MIL-STD-461G, CS114 (System) |
| Conducted Susceptibility, Bulk Cable Injection, Impuls | MIL-STD-461G, CS115 (System) |
| Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | MIL-STD-461G, CS116 (System) |
| Conducted Susceptibility, Personnel Borne Electrostatic Discharge (ESD) | MIL-STD-461G, CS118 (System and Wireless Remote) |
| Radiated emission Magnetic Field | MIL-STD-461G, RE101 (System and Wireless Remote) |
| Radiated emission Electric Field | MIL-STD-461G, RE102 Above Deck (System and Wireless Remote) |
| Radiated susceptibility Magnetic Field | MIL-STD-461G, RS101 (System and Wireless Remote) |
| Radiated Susceptibility Electric Field | MIL-STD-461G, RS103 Above Deck (System and Wireless Remote) |
A fully scalable cloud-based solution, ViSOL™ software helps IPLEX One users work even more efficiently, more insightfully, and more consistently. Intuitively organize, analyze, and report your RVI data with ViSOL’s advanced analytics, visualization, and collaboration tools.

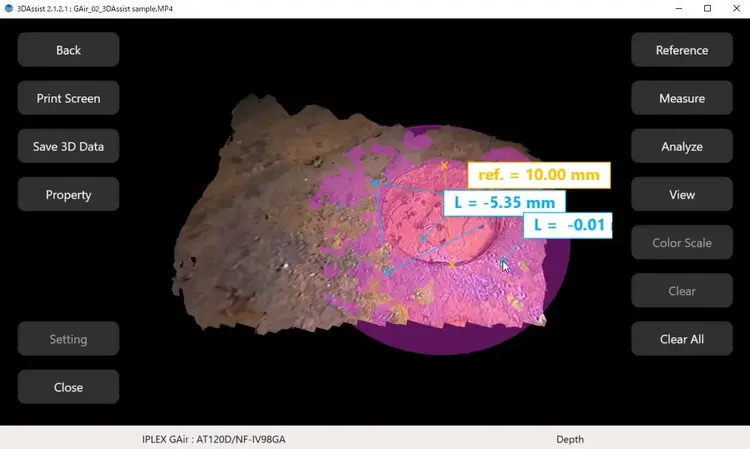

Combine the IPLEX One’s optical tip adapters with 3DAssist™ software to enable advanced 3D modeling and dynamic comparative measurement. This powerful integration boosts RVI precision while reducing inspection time—dramatically enhancing overall inspection quality.
