Videoscopes & Borescopes
IPLEX TX II
The ultra-thin IPLEX TX II video borescope is available with a 2.2 mm diameter flexible scope or a 1.8 mm rigid scope. Using the flexible scope, you can obtain a wide field of view in spaces where…
- 120-degree field of view to observe a wide area at once, helping speed up inspections
- High-pixel CMOS sensor delivers excellent image quality
- Bright LED illumination enables you to see better in large spaces

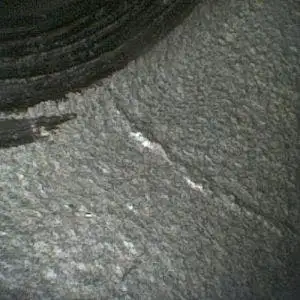

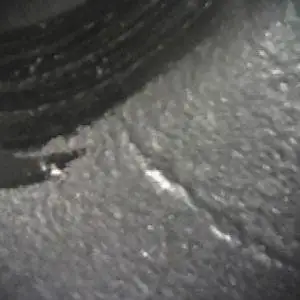

- Image adjustment methods—like image turning and halation reduction—make it easier to see in reflective areas and capture clear, low-noise images
Better Imaging in Small Spaces

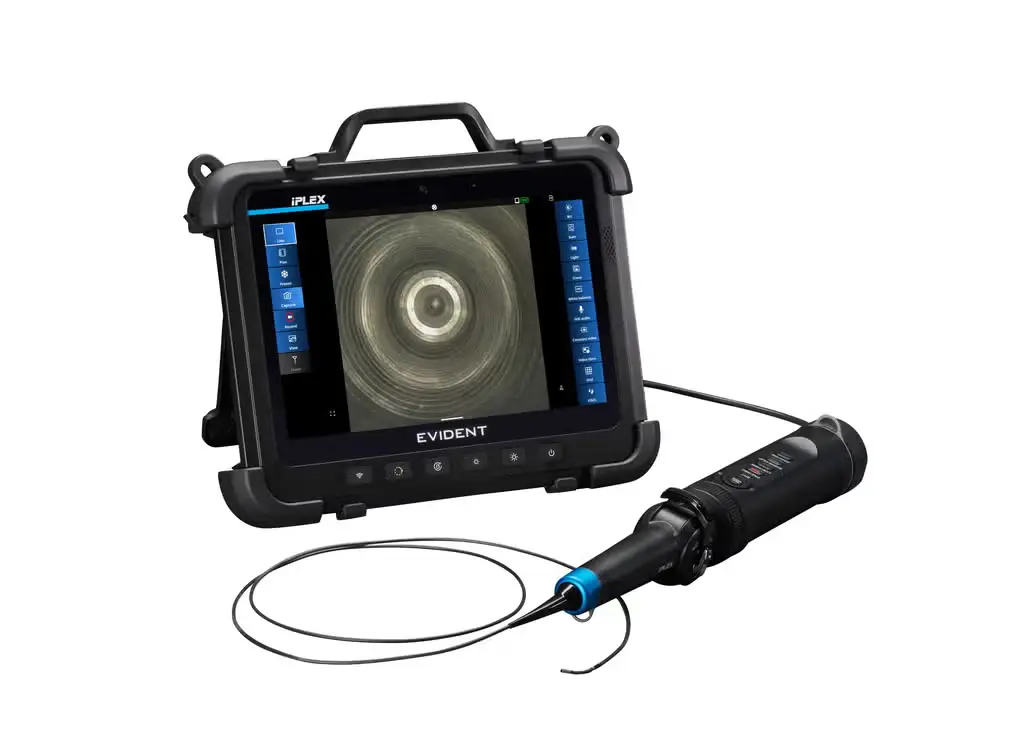

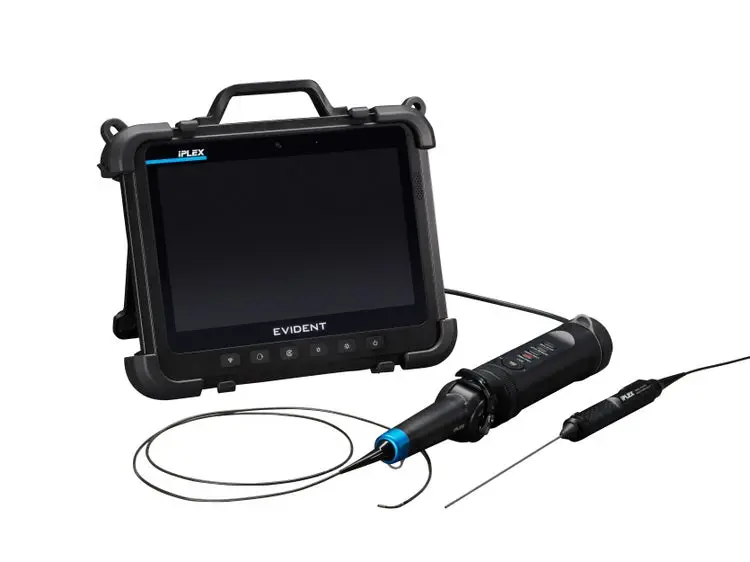

The ultra-thin IPLEX TX II video borescope is available with a 2.2 mm diameter flexible scope or a 1.8 mm rigid scope. Using the flexible scope, you can obtain a wide field of view in spaces where the opening is very small for faster inspections and easier decision making. Combining high image quality and user comfort, the IPLEX TX II video borescope enables efficient inspection of castings, molds, and other parts with small cavities.
Repeatable RVI Results
The IPLEX TX II video borescope offers easier insertion to help you reach your target faster as well as improved image quality that supports your decision making.
- Visual Inspection
- Video Borescopes
IPLEX™ One Videoscope Solution

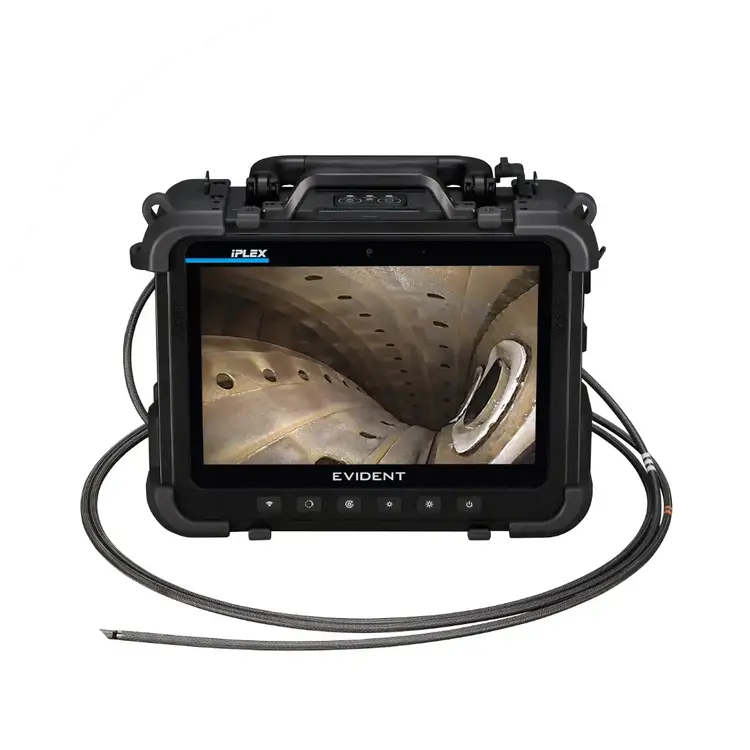

The 10th generation of the IPLEX videoscope system, IPLEX One is a unified, software-driven platform that empowers you to work faster, see more, and stay ahead. Combining groundbreaking Swoptix 3D measurement technology with viewing and analysis upgrades and modular scalability, IPLEX One redefines what’s possible in remote visual inspection.
IPLEX TX (predecessor)
See More
- 120-degree field of view to observe a wide area at once, helping speed up inspections
- High-pixel CMOS sensor delivers excellent image quality
- Bright LED illumination enables you to see better in large spaces
- Image adjustment methods—like image turning and halation reduction—make it easier to see in reflective areas and capture clear, low-noise images
- Scene mode enables you to create two image setting configurations and toggle between them
IPLEX TX II
Inspect in Smaller Spaces
- Access small openings with the 2.2 mm insertion tube
- Insertion tube with a 2 mm shorter rigid distal end compared to the original IPLEX TX combined with improved hardness and articulation control, making it easier to maneuver in smaller spaces
- The insertion tube’s articulating section has a tungsten outer braid for added protection, while its shortened length help keep it from getting stuck
- The rigid insertion tube's air injector enables you to blow liquid droplets away to obtain clearer images *
*The protection sleeve is required to use the air injector.
Stay Comfortable During Long Inspections

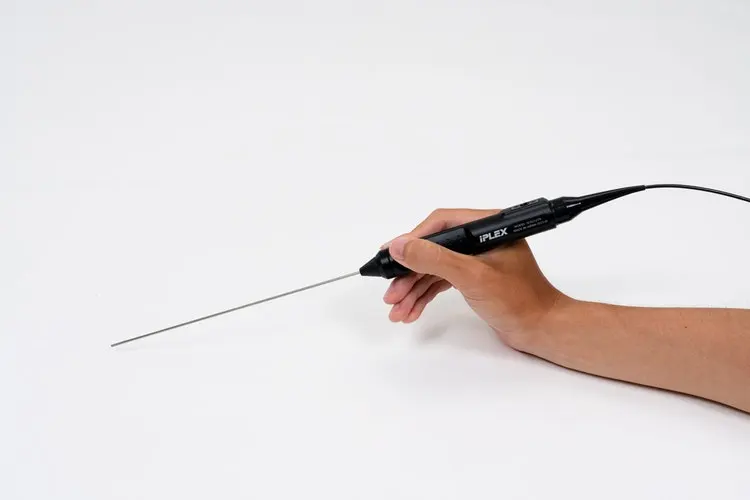

- Ultra-lightweight rigid scope weighs as much as a ballpoint pen, so there’s less strain when you’re holding it for long periods of time
- Extend the grip to grasp the tube closer to the insertion point for finer control
- Images are displayed on a tablet, so you can position it where it’s comfortable
Durable and Flexible
- The flexible insertion tube’s articulation section improves its overall durability
- Metal braiding in the articulation section provides additional protection and wear resistance
- For applications where it’s required, the optional rigid scope enables you to acquire high-quality images and pass through openings as small as 1.8 mm
- With the rigid scope's CMOS imaging sensor, images still transmit to the screen if the tube is slightly damaged

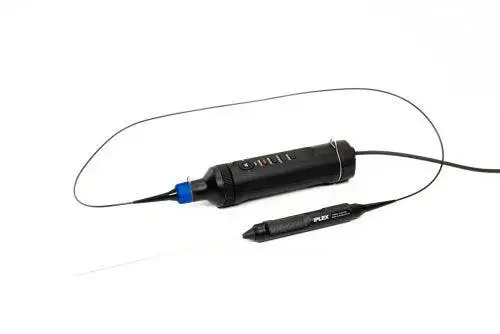

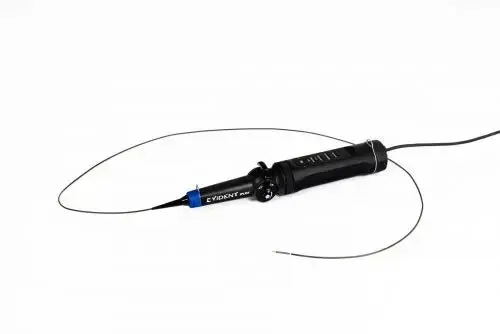

Flexible scope unit
Rigid scope unit
Key Features
- 120-degree field of view to observe a wide area at once, helping speed up inspections
- High-pixel CMOS sensor delivers excellent image quality
- Bright LED illumination enables you to see better in large spaces
- Image adjustment methods—like image turning and halation reduction—make it easier to see in reflective areas and capture clear, low-noise images
- Scene mode enables you to create two image setting configurations and toggle between them
Technical Specifications
Microsoft Surface Pro9 Intel Core i5, 8 GB RAM, Windows 11 Pro (64 bit)
| Microsoft Surface Pro9 | Intel Core i5, 8 GB RAM, Windows 11 Pro (64 bit) |
|---|
Panasonic FZ-G2 Intel Core i5, 8 GB RAM, Windows 11 Pro (64 bit)
| Panasonic FZ-G2 | Intel Core i5, 8 GB RAM, Windows 11 Pro (64 bit) |
|---|
CPU Intel Core i5
| CPU | Intel Core i5 |
|---|
RAM 8 GB or larger (dual channel)
| RAM | 8 GB or larger (dual channel) |
|---|
HDD 8 GB free space or more
| HDD | 8 GB free space or more |
|---|
Display resolution 1280 × 800 or more
| Display resolution | 1280 × 800 or more |
|---|
External terminal USB TypeC
| External terminal | USB TypeC |
|---|
OS Windows 11 Pro (64bit)
| OS | Windows 11 Pro (64bit) |
|---|
Others IEC/EN60950-1 or IEC/EN62368-1 compliant
| Others | IEC/EN60950-1 or IEC/EN62368-1 compliant |
|---|
Software & Options
Connecting You with More
Streamline your visual inspections with ViSOL. Designed to intuitively organize, analyze, and report inspection data, ViSOL delivers actionable insights with advanced analytics, clear visualization, and seamless collaboration. A fully scalable cloud software solution, ViSOL supports digital transformations for individuals and organizations at any scale.
