Mini-Wheel Encoder
Compact Wheel Encoder for Encoded Scanner Position Tracking
Availability In Stock
Key Features
- Compact Design: Miniaturized wheel encoder for tight-clearance scanner configurations.
- High Resolution: Accurate position tracking for encoded B-scan and C-scan data.
- Universal Compatibility: Compatible with OmniScan, EPOCH, and FOCUS PX acquisition units.
- Rugged Construction: Built for field use in industrial inspection environments.

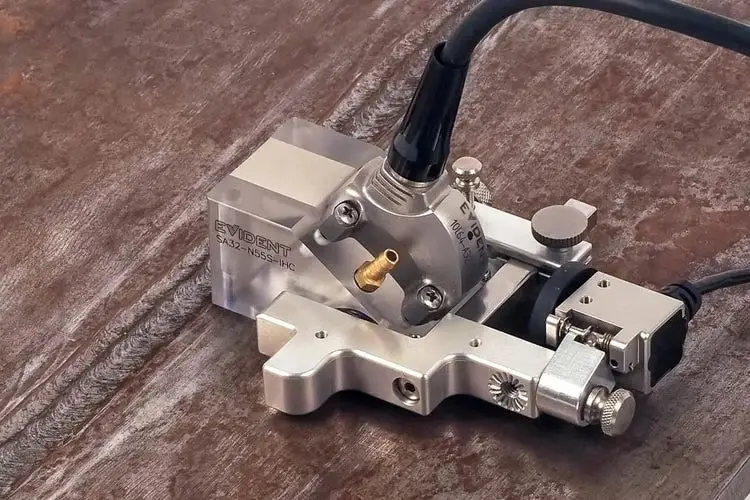

The Mini-Wheel Encoder is a compact position encoder designed for use with Evident's family of motorized and manual scanners. It provides precise position data for encoded ultrasonic inspection, enabling accurate B-scan and C-scan data acquisition.
Compact Wheel Design
Miniaturized form factor fits in tight scanner configurations without compromising position accuracy.
High-Resolution Encoding
Delivers precise position data for encoded B-scan and C-scan mapping.
Universal Connector

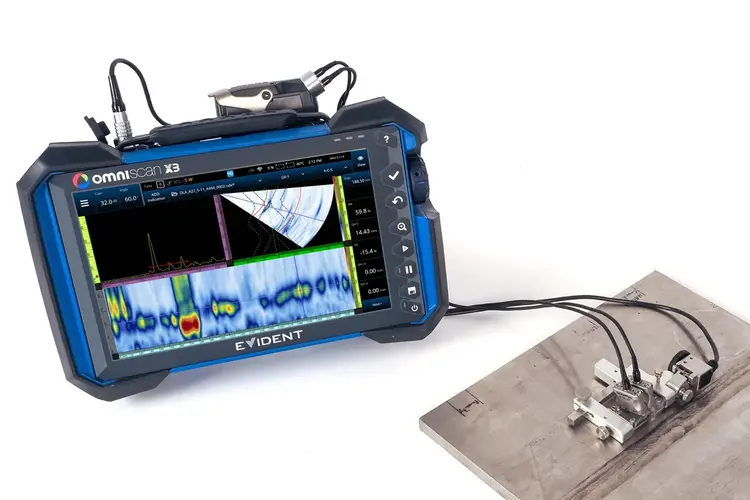

Compatible with OmniScan, EPOCH, and FOCUS PX acquisition platforms.
Field-Ready
Rugged design for reliable operation in harsh industrial inspection environments.
Specifications
Applications
- Corrosion Mapping: Encoded C-scan surveys on pipelines, vessels, and tanks.
- Weld Inspection: Encoded B-scan for accurate position-referenced weld data.
- Manual Scanning: Add positional encoding to hand-guided scanner setups.
