Instantly identify materials and their chemical composition from any location using the Vanta™ handheld XRF analyzer. The Vanta series delivers fast, accurate elemental analysis and material identification using smart and cloud-connected technology.
Instantly identify materials and their chemical composition from any location using the Vanta handheld XRF analyzer. The Vanta series delivers fast, accurate elemental analysis and material identification using smart and cloud-connected technology.

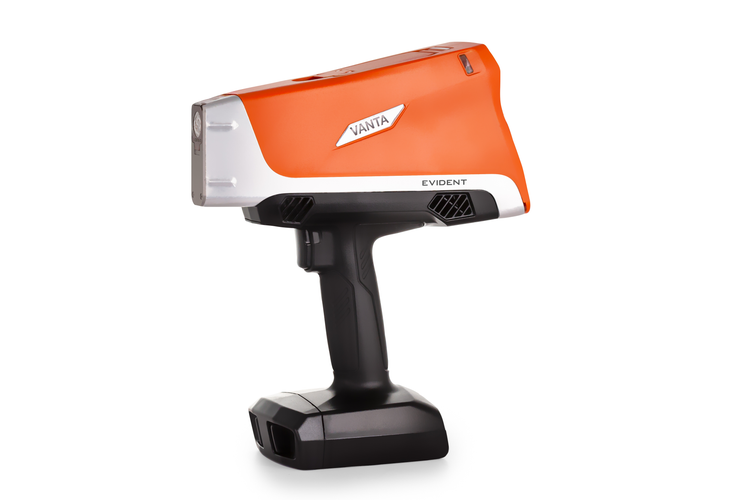

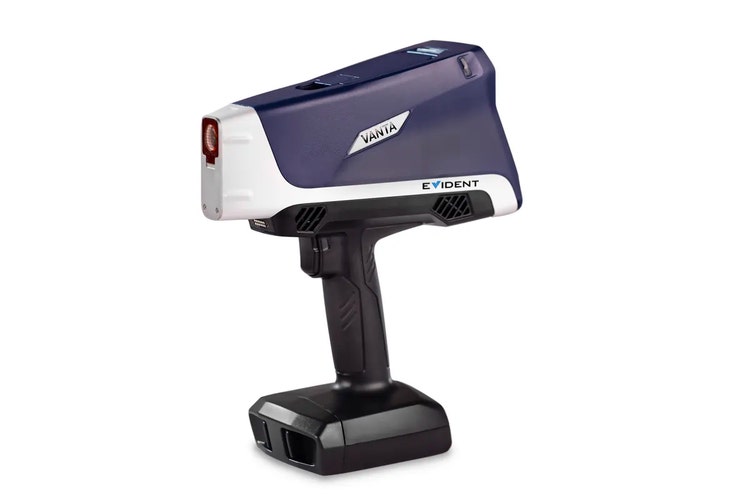

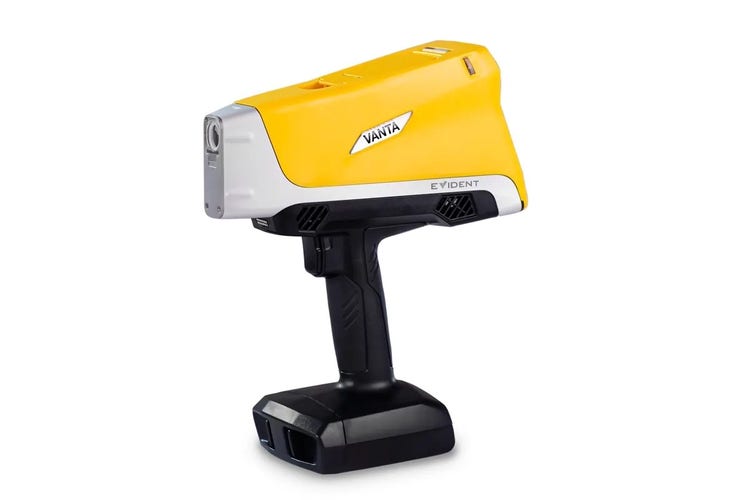

Our next-generation Vanta handheld XRF analyzers are available in three versatile models—Vanta Max, Vanta Core, and Vanta Element. They combine the exceptional accuracy, speed, and durability of the Vanta series with improved ergonomics, a streamlined interface, and enhanced connectivity for greater productivity. All Vanta analyzers are backed by a three-year warranty for a low cost of ownership.

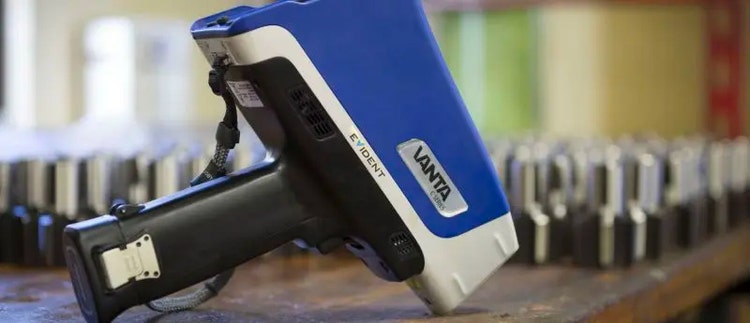

VDM Metals, a global supplier of metals, employs multiple Vanta handheld XRF analyzers throughout their facility for end-to-end alloy identification.

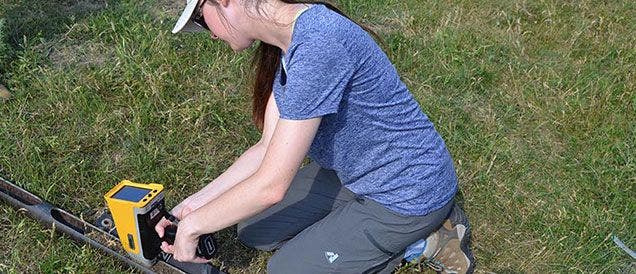

A Texas Tech University professor made an award-winning soil analysis discovery using our Vanta XRF analyzer.

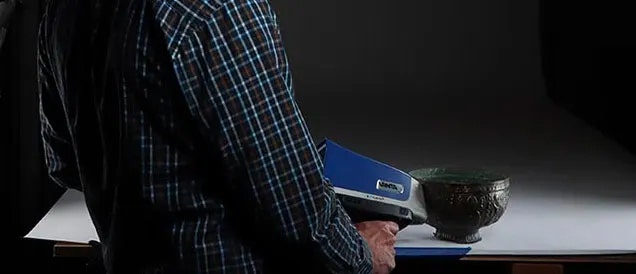

Artemis Testing Lab relies on the Vanta XRF analyzer to evaluate the authenticity of artifacts for museums and galleries around the world.
Our Vanta XRF analyzer was used on the popular History Channel TV show Pawn Stars to ID an ancient helmet in seconds.

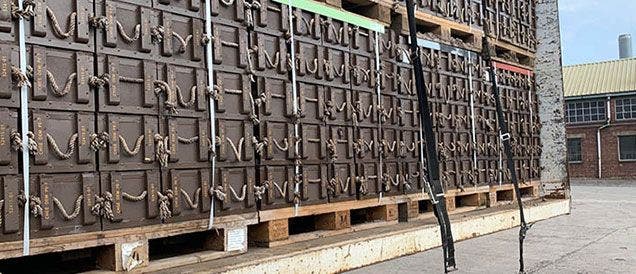

Austin Hayes Ltd. used Vanta handheld XRF analyzers to safely recycle 20,000 wooden ammunition boxes.
With an enhanced ergonomic design, Vanta handheld XRF analyzers are a productive tool for extended use in the field and lab. Combined with their proven ruggedness and ease of use, Vanta analyzers can increase uptime in the toughest environments.

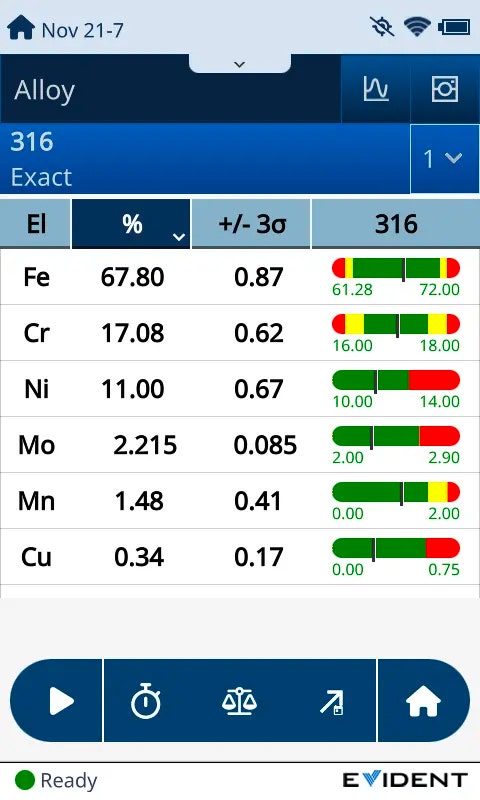

Designed with the technician in mind, the Vanta analyzer simplifies handheld XRF testing from start to finish to maximize user throughput. Work efficiently using a modern, intuitive interface and browser-based software option.

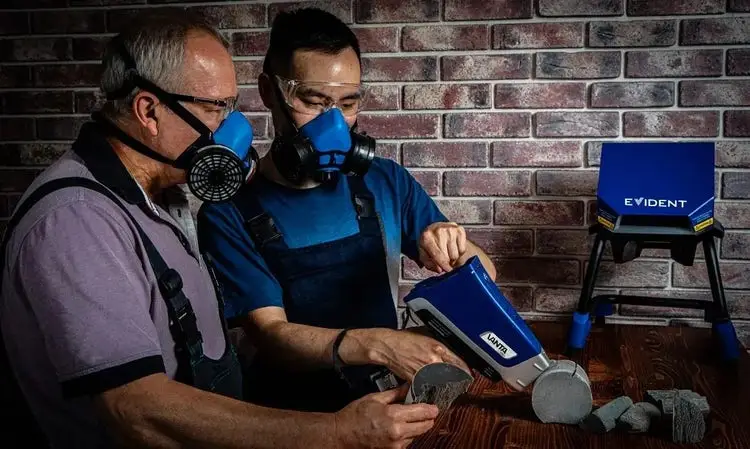

Vanta handheld XRF analyzers are used by thousands of customers around the world in diverse applications. Building on proven performance, Vanta analyzers provide precision and accuracy for portable XRF analysis.
Vanta™ handheld XRF analyzers provide fast, accurate measurement of the valuable platinum group metals (PGMs) palladium (Pd), platinum (Pt), and rhodium (Rh) found in car catalytic converter material. On-the-spot measurements enable efficient sorting and price evaluation of catalyst scrap throughout the recycling circuit.
Vanta handheld XRF analyzers for soils and sediment analysis provide fast, accurate environmental remediation and assessment data. Simple to use, Vanta analyzers are rugged for the most demanding field applications.

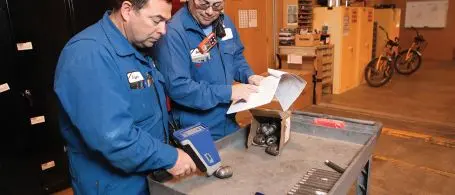

Vanta handheld XRF analyzers for manufacturing QA/QC provide highly specific material chemistry to quickly and accurately identify pure metals and alloy grades when material accuracy is critical.

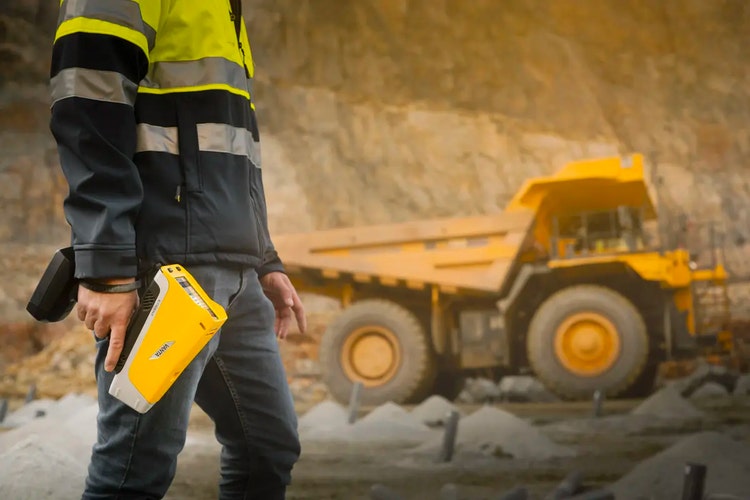

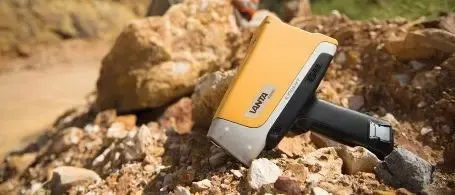

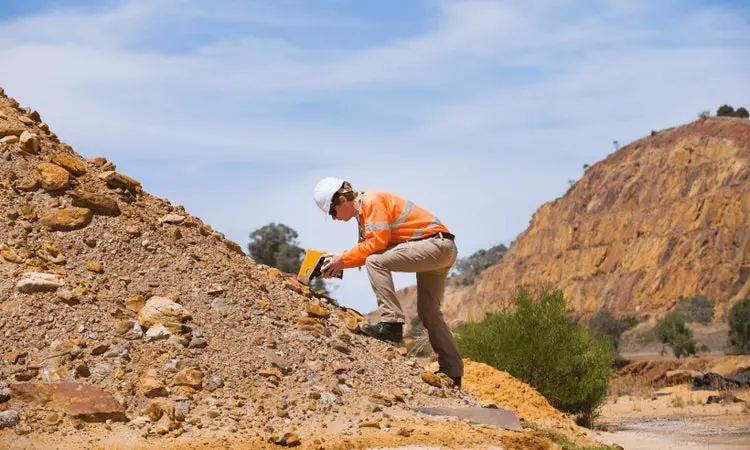

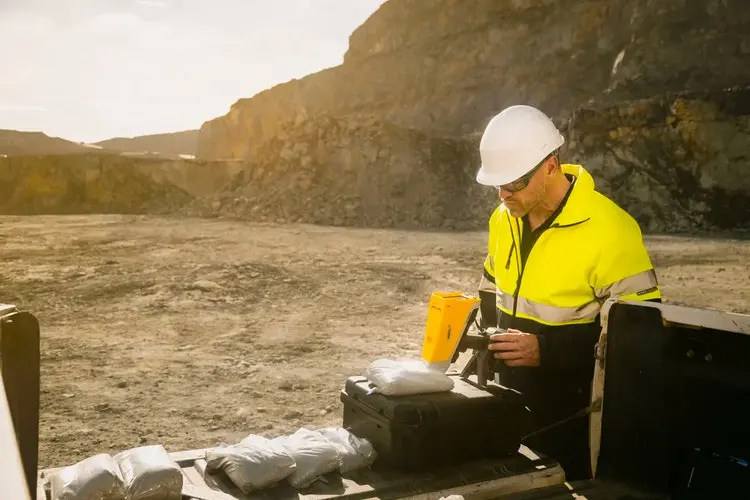

Vanta handheld XRF analyzers for mining and geochemistry provide immediate on-site elemental analysis for geochemical exploration, mining grade control, ore processing, and remediation.

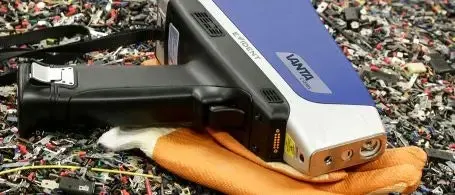

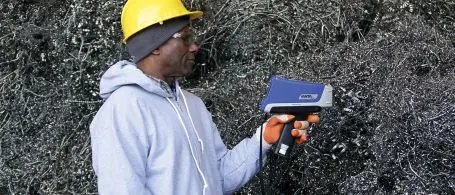

Vanta handheld XRF devices for recycling and scrap sorting are IP55 or 54-rated, depending on the model, to withstand rain, dirt, and dust and are drop tested using U.S. Department of Defense methods (MIL-STD-810G) to help prevent breakages and maximize uptime in the toughest scrap yards.

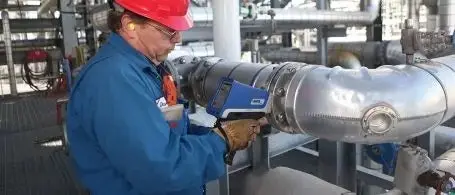

Vanta handheld XRF analyzers for PMI provide highly specific material chemistry to quickly and accurately identify alloy grades to help ensure correct alloy installation in critical locations.
Vanta handheld XRF analyzers are used to ensure compliance with RoHS and local or international regulatory laws. Vanta analyzers provide on-the-spot chemical analysis of consumer products to quickly scan for Pb, Cd, Hg, Cr, and Br.

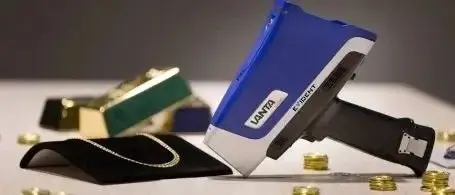

Vanta handheld XRF analyzers for precious metals provide fast, accurate alloy chemistry and karat classification for identifying gold, platinum, silver, and rhodium in jewelry analysis and car catalyst recycling.
| Dimensions (W x H x D) | 10.4 × 29.6 × 24.1 cm (4.1 × 11.6 × 9.5 in.) |
|---|---|
| Weight | Max: 1.9 kg (4.17 lb) with battery, 1.67 kg (3.67 lb) without batteryCore: 1.85 kg (4.06 lb) with battery, 1.62 kg (3.56 lb) without batteryElement-S: 1.84 kg (4 lb) with battery, 1.61 kg (3.55 lb) without batteryElement: 1.71 kg (3.77 lb) with battery, 1.48 kg (3.26 lb) without battery |
| Excitation Source | X-ray tube with an application-optimized anode material.Max: 4 W with 8–50 kV rhodium anodeCore: 4 W with 8–50 kV silver, 8–40 kV rhodium, or 8–40 kV tungsten anodeElement-S: 4 W with 8–50 kV silver anodeElement: 2 W with 8–35 kV tungsten anode |
| Primary Beam Filtration | Max and Core: 8-position autoselected filter per beam per mode; optional collimation to 3 mm diameter beam spotElement-S: 4-position filter wheelElement: Fixed aluminum filter |
| Detector | Silicon drift detector with a high-sensitivity graphene window |
| Power | Removable 14.4 V Li-ion battery (with hot-swap capability on Max only) or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max |
| Display | 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control |
| Operating Environment | Temperature range for Max and Core: -10 °C to 50 °C (14 °F to 122 °F), and continuous full duty cycle with optional fanTemperature range for Element: -10 °C to 45 °C (14 °F to 113 °F)Humidity: 10% to 90% relative humidity non-condensing |
| Drop Test | Military Standard 810-G 4-foot (1.2 m) drop test |
| IP Rating and Detector Shutter | Max and Element: IP54* dust protected and protected against water splashing from all directionsCore: IP55* dust protected and protected from low-pressure water jets from all directionsMax and Core: Solid detector shutter to help prevent detector damage*In-use position |
| Pressure Correction | Max and Core: Built-in barometer for automatic altitude and air density correction |
| GPS | Max: Embedded GPS / GLONASS receiver |
| Operating System | LinuxCloud enabled with user fleet manager capability |
| Data Storage | microSD slot with removable 1 GB industrial SD card included |
| USB | (2) USB 2.0 Type-A ports for accessories such as Wi-Fi, Bluetooth, and USB flash drives(1) USB 2.0 Type Mini-B port for connection to computer |
| Wi-Fi® | Supports an 802.11 b/g/n (2.4 GHz) cable optional USB adapter |
| Bluetooth® | Supports Bluetooth with an optional USB adapter |
| Aiming Camera | Max and Core: Optional full VGA CMOS camera |
| Panorama Camera | 13-megapixel CMOS camera with autofocus lens (optional) |
| Warranty | Three-year warranty |
| Selected Optional Accessories | Max and Core: Field Stand, Soil Foot, Holster, Work Station, Weld Mask, Hot Heel, and Probe ShieldElement: Field Stand, Soil Foot, and Holster |
Vanta handheld XRF analyzers have a variety of features so that you can customize and adapt your analyzer to fit your specific workflow. The analyzer’s software makes it simple to customize the device in the way that you want. Innovative software features enable you to get the most out of your analyzer for a fast return on investment.
Vanta handheld XRF analyzers feature innovative software features designed to maximize their capabilities.
*Vanta Max model only
Vanta analyzers are designed to enable efficient fleet management in conjunction with Vanta Desktop PC software.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Evident Corporation is under license.
