Acquisition Unit
FOCUS PX Acquisition Unit
High-Performance Modular PA & UT Acquisition for R&D and Production
Availability In Stock
Key Features
- Up to 256 Channels: Scalable PA acquisition from 32 to 256 pulser/receiver channels.
- Multi-Group & Multi-Mode: Simultaneous PA, UT, and TOFD data collection.

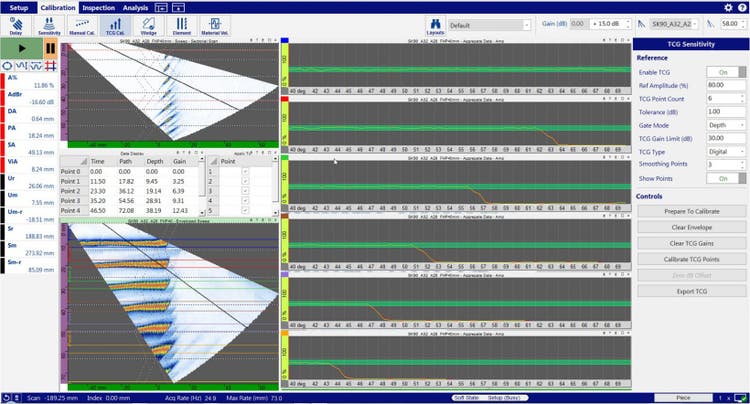

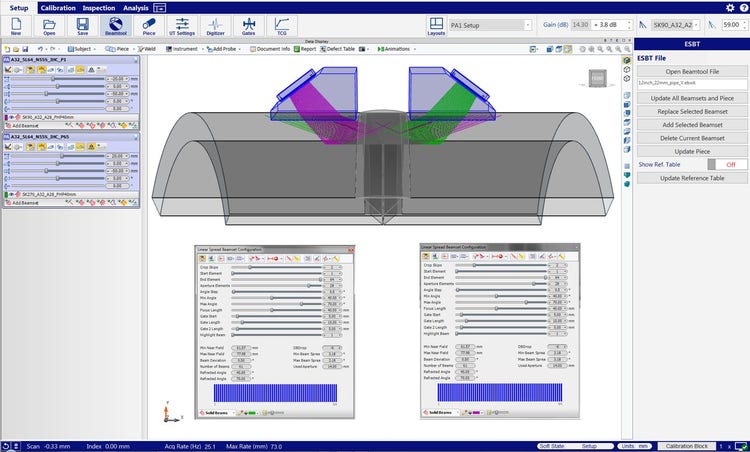

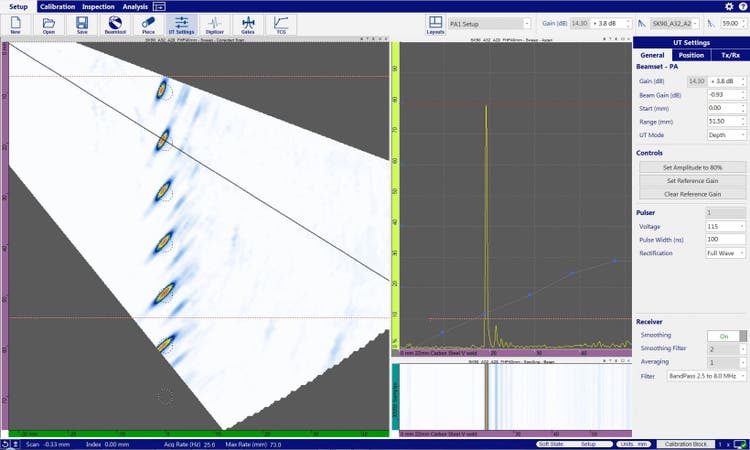

- PC-Based Platform: Integrates with CAPTURE™ and Focus Control software.
- High PRF: Up to 10 kHz pulse repetition frequency for high-speed scanning.
The FOCUS PX is a powerful modular phased array acquisition unit designed for laboratory and production-line applications. It provides unmatched flexibility for custom automated NDT systems with up to 256 channels.
High Channel Count

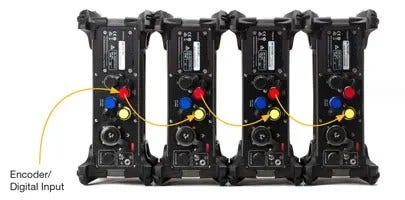

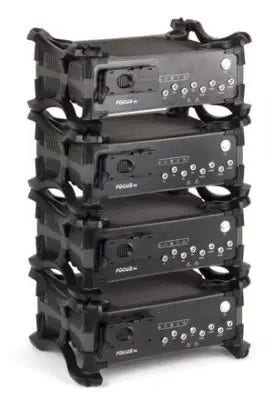

Scalable Up to 256 PA Channels
The FOCUS PX acquisition unit is designed for applications that require high channel counts and multi-group configurations. Its scalable architecture allows customers to build systems suited for complex geometries and materials.
Request QuoteMulti-Technology

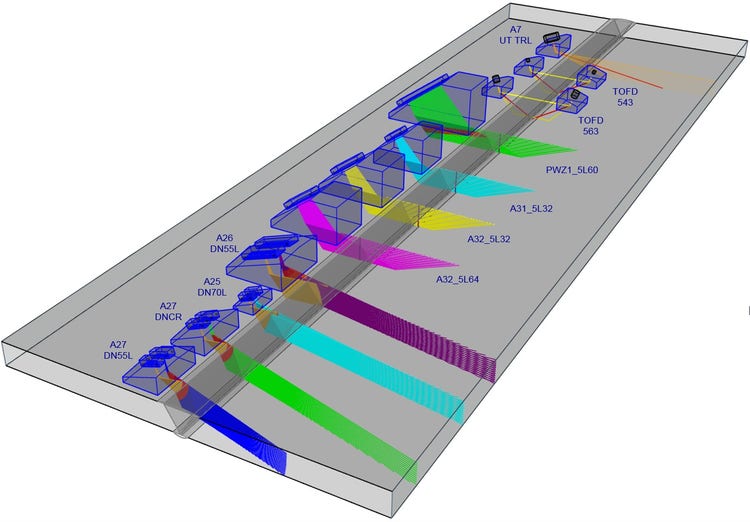

PA, UT & TOFD Simultaneously

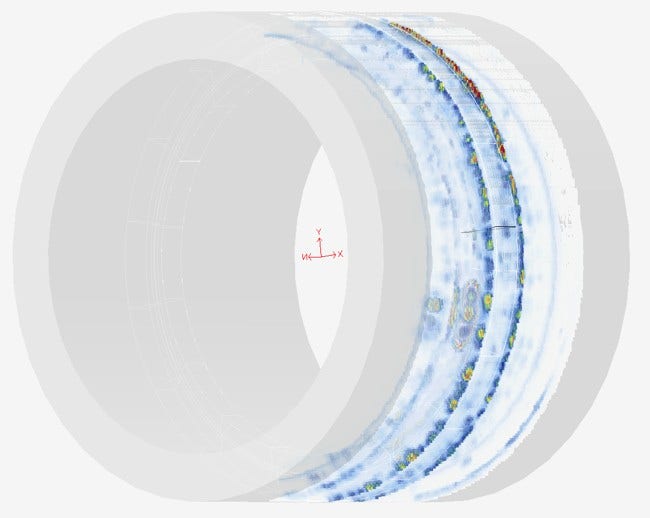

The FOCUS PX supports simultaneous data collection across multiple techniques — phased array (PA), conventional UT, and TOFD — providing a complete picture of material integrity in a single scan pass.
- Up to 10 kHz PRF
- Multi-group acquisition
- CAPTURE & Focus Control software
Technical Specifications
Applications
- Automated Weld Inspection: High-speed scanning of pressure vessels, pipelines, and structural welds.
- Aerospace: Composite and metallic component inspection in production environments.
- R&D Systems: Custom NDT system integration with high channel flexibility.
- In-Line Production: Integrated quality control for manufacturing lines.
Downloads
FOCUS PX Brochure (PDF)
Download
